*Unit Load Devices (ULD) Guidelines

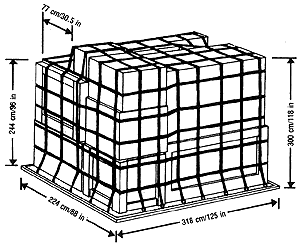

The 20-ft Unit Load Device (ULD) Cargo-Handling System With the 20-ft. unit load device (ULD) loading system, cargo can be loaded automatically as shown in this set of diagrams and pictures. The steerable power drive units in the door area are automatically sequenced to rotate the 20-ft. long ULD from transverse to longitudinal orientation.
ID Code : P6P, PMC
U.S. Domestic Code : M-1 (Main Deck)
Aircraft Types & Main or Lower Deck 747 Freighter Main Deck *
Rate Class 2H, 2C
Internal Volume Limiting Internal Dimensions
Maximum Gross Weight : 6800 kg (15000 lb)
Tare Weight (incl. net) : 110 kg (242 lb)
Contour applies to 747F side-door loader. On 747F nose-door
loader max. height is 224cm/96in
LD 7

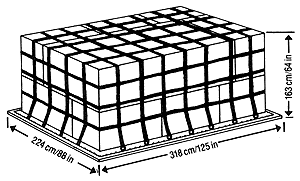

ID Code : P1P, PAG, PAP, PAJ, P1G U.S. Domestic Code : LD-7
Aircraft Types & Main or Lower Deck All 747's & 767 * Lower Deck
Rate Class 5
Internal Volume: Limiting Internal Dimensions:
Maximum Gross Weight : 4626 kg (10200 lb)
Tare Weight (incl. net) : 110 kg (242 lb)
This unit may also be loaded on the main deck of 747F. Max. gross
weight is then 6800 kg/15000 lb. On 767, max. gross weight is 5035 kg/11100 lb

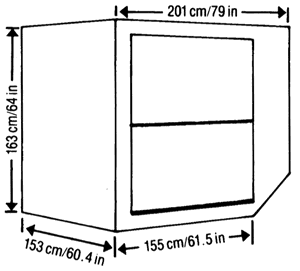

ID Code : AVE, AKE U.S. Domestic Code : LD-3
Aircraft Types & Main or Lower Deck All 747's & 767 : Lower Deck
Rate Class : 8 Internal Volume : 4.3 m3 (153 cu ft)
Limiting Internal Dimensions At Base : 140 x 147 x 152 cm
(55 x 58 x 60 in)
Maximum Gross Weight : 1587 kg (3500 lb)
Tare Weight : Actual tare weights vary from 77 kg/170 lb to 112 kg/247 lb depending
on manufacturer's models.

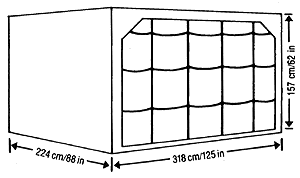

ID Code : AAU U.S. Domestic Code: LD-29
Aircraft Types & Main or Lower Deck : All 747's Lower Deck
Rate Class : 5W Internal Volume : 14.5 m3 (511 cu ft)
Limiting Internal Dimensions : At Base 208 x 302 x 152 cm (82 x 119 x 60 in)
Maximum Gross Weight : 4626 kg (10200 lb) Tare Weight : 260 kg (573 lb)

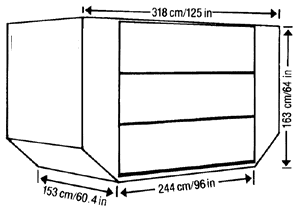

ID Code : AA2, AAP U.S. Domestic Code : LD-9
Aircraft Types & Main or Lower Deck : All 747's & 767 * Lower Deck
Rate Class : 5 Internal Volume:: 10.6 m3 (374 cu ft)
Limiting Internal Dimensions : 208 x 302 x 152 cm : (82 x 119 x 60 in)
Maximum Gross Weight : 4626 kg (10200 lb) *
Tare Weight : Actual tare weights vary from 200 kg/441 lb to 272 kg/600 lb depending on manufacturer's models
This unit may also be loaded on the main deck of 747F. Max. gross weight is then 6800 kg/15000 lb. On 767, max. gross weight is 5035 kg/11100 lb.
|
|
|
