Equipment  information

¡@

¡@ General Purpose Container
¡@ ¡@
OOCL offers 20 ft and 40 ft general-purpose containers. Manufactured from either Aluminum or steel, they are suitable for most types of cargo. Aluminum containers have a slightly larger payload than steel, and steel containers have a slightly larger internal cube.

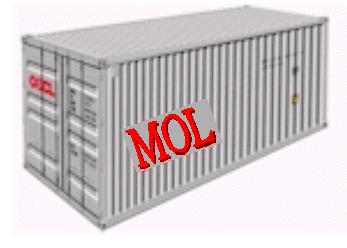

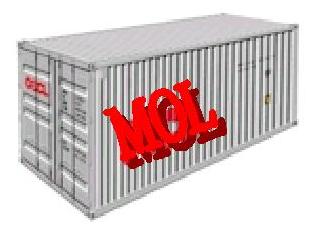

General Purpose 20' x 8' x 8'6" Steel
¡@ ¡@

Millimeters

Feet

Internal
Dimensions

 Length 5,898 19'4.2"
Width 2,352 7'8.6"
Height 2,391 7'10"

Door
Opening

 Width 2,340 7'8"
Height 2,280 7'5.8"
¡@ ¡@

Kilograms

Pounds
Weight Max Gross 24,000 52,910
Tare 2,280 5,090
Max Payload 21,720 47,885
¡@ ¡@ Cube Meters Cube Feet
Internal Capacity 33.2 1,171

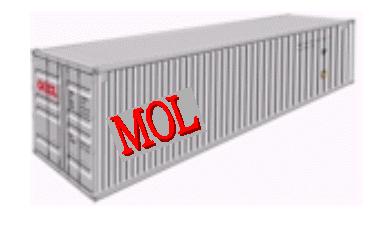

General Purpose 40' x 8' x 8'6"

Steel

Aluminum
¡@

Millimeters

Feet

Millimeters

Feet

Internal
Dimensions

 Length 12,040 39'5.3" 12,021 39'5.3"
Width 2,353 7'8.5" 2,335 7'7.9"
Height 2,383 7'9.7" 2,360 7'8.9"

Door
Opening

 Width 2,340 7'8" 2,337 7'7.9"
Height 2,280 7'5.8" 2,271 7'5.4"
¡@

Kilograms

Pounds

Kilograms

Pounds

Weight

 Max Gross 30,480 67,200 32,000 70,400
Tare 3,830 8,450 3,170 6,990
Max Payload 26,650 58,630 28,830 63,560
¡@ ¡@ Cube Meters Cube Feet Cube Meters Cube Feet
Internal Capacity 67.7 2,390 67.7 2,380

¡@

¡@ High Cube Container
¡@ ¡@
With high cube containers, you gain an extra foot in height compared with general-purpose containers. Ideal for light, voluminous cargo or bulky cargo. These extra volume containers come in 40 ft and 45 ft sizes in steel and aluminum.

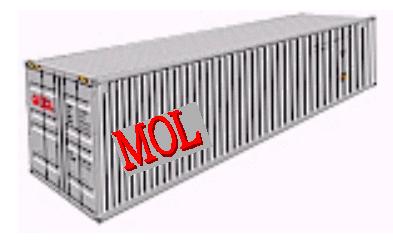

High Cube 40' x 8' x 9'6" Steel
¡@ ¡@

Millimeters

Feet

Internal
Dimensions

 Length 12,031 39'5.6"
Width 2,352 7'8.5"
Height 2,698 8'10"

Door
Opening

 Width 2,340 7'8.1"
Height 2,585 8'5.8"
¡@ ¡@

Kilograms

Pounds
Weight Max Gross 30,480 67,200
Tare 3,980 8,775
Max Payload 26,500 58,425
¡@ ¡@ Cube Meters Cube Feet
Internal Capacity 76.3 2,694


High Cube 45' x 8' x 9'6"

Steel

Aluminum
¡@

Millimeters

Feet

Millimeters

Feet

Internal
Dimensions

 Length 13,544 44'5.2" 13,583 44'6.7"
Width 2,352 7'8.5" 2,345 7'8.3"
Height 2,698 8'10" 2,687 8'9.7"

Door
Opening

 Width 2,340 7'8.1" 2,343 7'8.2"
Height 2,585 8'5.8" 2,585 8'5.8"
¡@

Kilograms

Pounds

Kilograms

Pounds

Weight

 Max Gross 30,480 67,200 30,480 67,200
Tare 4,800 10,580 3,980 8,780
Max Payload 25,680 56,614 26,500 58,420
¡@ ¡@ Cube Meters Cube Feet Cube Meters Cube Feet
Internal Capacity 86 3,040 85.6 3,023

¡@

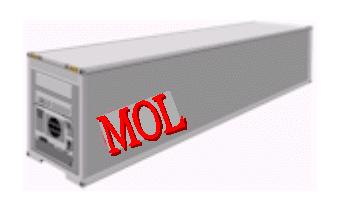

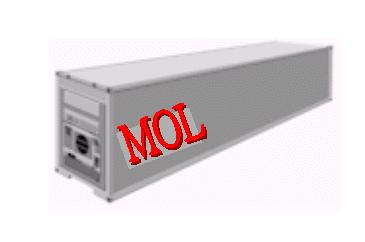

¡@ Refrigerated Containers
¡@ ¡@
OOCL has one of the largest fleets of state-of-art containers, manufactured to exacting specifications and continually updated. Bottom-air delivery system ensures your refrigerated produce reaches its destination in optimum condition. For especially delicate produce, OOCL offers controlled atmosphere reefer units. Manufactured from aluminum with a stainless steel lining, OOCL reefers are available in 20 ft, 40 ft and 40 ft high cube sizes.

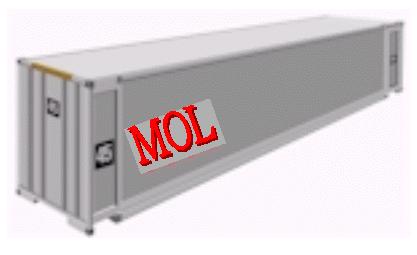

Refrigerated 40' x 8' x 9'6"

Aluminum
¡@

Millimeters

Feet

Internal
Dimensions

 Length 11,569 37'11.4"
Width 2,294 7'6.2"
Height Nominal 2,540 8'4"
Usable 2440 8'

Door
Opening

 Width 2,294 7'6.2"
Height 2,558 8'4.7"
¡@

Kilograms

Pounds

Weight

 Max Gross 30,480 67,200
Tare 4,420 9,750
Max Payload 26,060 57,450
¡@ ¡@ Cube Meters Cube Feet
Internal Capacity Nominal 67.4 2,380
Usable 64.8 2,289

Refrigerated 40' x 8' x 8'6"

Aluminum
¡@

Millimeters

Feet

Internal
Dimensions

 Length 11,587 38'0.1"
Width 2,259 7'4.9"
Height Nominal 2,219 7'3.4"
Usable 2,119 6'11.4"

Door
Opening

 Width 2,283 7'5.9"
Height 2,177 7'1.7"
¡@

Kilograms

Pounds

Weight

 Max Gross 32,000 70,550
Tare 4,350 9,590
Max Payload 27,650 60,960
¡@ ¡@ Cube Meters Cube Feet
Internal Capacity Nominal 58.1 2,051
Usable 55.5 1,959

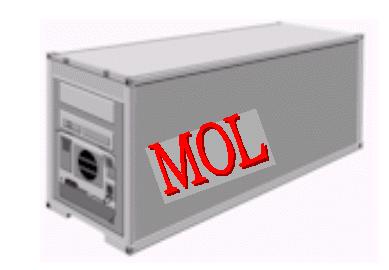

Refrigerated 20' x 8' x 8'6"

Aluminum
¡@

Millimeters

Feet

Internal
Dimensions

 Length 5,455 17'11"
Width 2,294 7'6.2"
Height Nominal 2,288 7'6"
Usable 2,188 7'2"

Door
Opening

 Width 2,268 7'5.3"
Height 2,215 7'3.1"
¡@

Kilograms

Pounds

Weight

 Max Gross 24,000 52,800
Tare 2,950 6,503
Max Payload 21,050 46,407
¡@ ¡@ Cube Metres Cube Feet
Internal Capacity Nominal 28.6 1,010
Usable 27.4 967

¡@

¡@ Open Top Container
¡@ ¡@ Allowing cargo to be loaded from the top, open top containers are particularly suitable for bulky cargo such as machinery. They are fitted with a PVC tarpaulin cover and attachable bows with cable sealing devices. The container doors can be removed to make the stuffing of cargo more convenient. Manufactured from steel, open top containers come in 20 ft and 40 ft sizes.

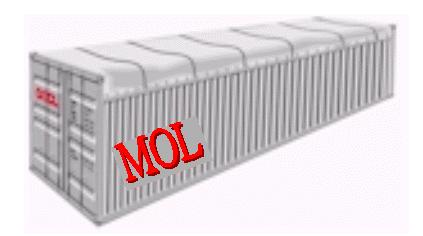

Open Top 40' x 8' x 8'6"

Steel
¡@

Millimeters

Feet

Internal
Dimensions

 Length 12,021 39'5.2"
Width 2,350 7'8.4"
Height 2,330 7'7.7"

Door
Opening

 Width 2,338 7'8"
Height 2,234 7'3.8"
¡@

Kilograms

Pounds

Weight

 Max Gross 36,000 79,370
Tare 4,430 9,760
Max Payload 31,570 69,600
¡@ ¡@ Cube Meters Cube Feet
Internal Capacity 66.7 2,355

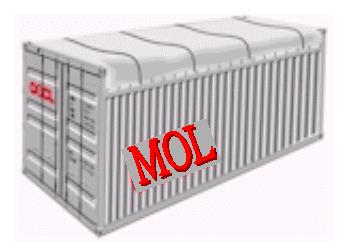

Open Top 20' x 8' x 8'6" Steel Steel
¡@ ¡@

Millimeters

Feet

Millimeters

Feet

Internal
Dimensions

 Length 5,902 19'4.3" 5,887 19'3.7"
Width 2,240 7'4.1" 2,350 7'8.4"
Height 2,352 7'8.5" 2,330 7'7.7"

Door
Opening

 Width 2,335 7'7.9" 2,338 7'8"
Height 2,240 7'4.1" 2,223 7'3.5"
¡@ ¡@

Kilograms

Pounds

Kilograms

Pounds
Weight Max Gross 24,000 52,910 24,000 52,910
Tare 2,440 5,380 2,560 5,640
Max Payload 21,560 47,520 21,440 47,270
¡@ ¡@ Cube Meters Cube Feet Cube Meters Cube Feet
Internal Capacity 32 1,133 32.2 1,138

¡@

¡@ Flatracks Container
¡@ ¡@
Flatracks are especially suited to heavy loads or cargo that needs loading from the top or sides, such as pipes and machinery. OOCL offers collapsible and non-collapsible containers with or without walls. Manufactured from steel, flatrack containers come in 20 ft and 40 ft sizes.


Flatracks 40' x 8' x 8'6"

Steel

Millimeters

Feet

Internal
Dimensions

 Length 12,032 39'5.6"
Width 2,240 7'4.1"
Height Unfolded 2,034 6'8.1"
Folded 570 1'10.4"
¡@

Kilograms

Pounds

Weight

 Max Gross 45,000 88,180
Tare 5,530 12,190
Max Payload 39,470 87,020
¡@ ¡@ Cube Meters Cube Feet
Internal Capacity 54.8 1936
Flatracks  20' x 8' x 8'6" Steel

Millimeters

Feet

Internal
Dimensions

 Length 5,727 18'9.4"
Width 2,240 7'4.1"
Height Unfolded 2,170 7'1.3"
Folded 420 1'4.6"
¡@ ¡@

Kilograms

Pounds
Weight Max Gross 30,480 66,140
Tare 2,950 6,500
Max Payload 27,530 60,690
¡@ ¡@ Cube Meters Cube Feet
Internal Capacity 27.9 986

¡@

¡@ Garmentainers
¡@ ¡@
Garments on hanger (GOH) shipments are specially created for OOCL. Our specially designed garmentainers give customers the option of using a string or bar system or a combination of both. The containers allow increased flexibility, greater load Internal Capacity and savings on transportation and handling cost. Garmentainers are available in 20 ft and 40 ft sizes.


Garmentainers 40' x 8' x 8'6"

 Steel

Millimeters

Feet

Internal
Dimensions

 Length 12,024 39'5.3"
Width 2,352 7'8.5"
Height 2,393 7'10.2"

Door
Opening

 Width 2,340 7'8"
Height 2,280 7'5.8"
¡@

Kilograms

Pounds

Weight

 Max Gross 30,480 67,200
Tare 3,885 8,565
Max Payload 26,595 58,635
¡@ ¡@ Cube Meters Cube Feet
Internal Capacity 67.7 2,390
Garmentainers 20' x 8' x 8'6" Steel

Millimeters

Feet

Internal
Dimensions

 Length 5,900 19'4.2"
Width 2,352 7'8.5"
Height 2,353 7'10.1"

Door
Opening

 Width 2,340 7'8"
Height 2,280 7'5.8"
¡@ ¡@

Kilograms

Pounds
Weight Max Gross 24,000 52,910
Tare 2,240 4,940
Max Payload 21,760 47,970
¡@ ¡@ Cube Meters Cube Feet
Internal Capacity 33.2 1,172
