Boeing 747-SP

¡@

ULD configuration: 12LD3/3LD7

Equipment available for freight (based on full passenger loads)

2LD3/3LD7 + Bulkhead

Volume available for freight (based on full passenger loads)

40.4 m3, Maximum weight: 11,500 kg

Boeing 747-200

ULD configuration: 12LD3/6LD7

Equipment available for freight (based on full passenger loads)

6LD7 + Bulkhead

Volume available for freight (based on full passenger loads)

70.0 m3

Maximum weight: 19,500 kg

Back To Air Export System Page


¡@

Boeing 747-300

¡@

ULD configuration: 12LD3/6LD7

Equipment available for freight (based on full passenger load)

6LD7 + Bulkhead

Volume available for freight (based on full passenger load

70.0 m3

Maximum weight: 20,000 kg

¡@

¡@

¡@


¡@

¡@

¡@

¡@

¡@

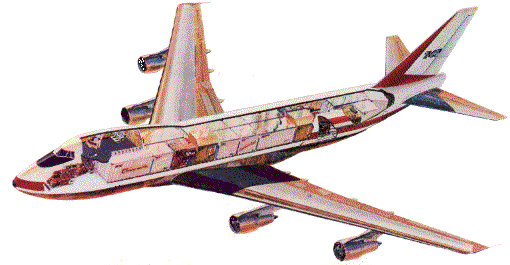

With a 284,870-pound (129,21-kg) payload and 5,120-mile (8,245-km) range, the 747-400 can carry more payloads further than any other commercial transport.

Cargo capacity

Main Deck

30 96- x 125-inch pallets = 21,347 ft3 (604.5 m3)

Lower Hold

Nine 96- x 125-inch pallets + two LD-1 containers + bulk = 4,605 ft3 (130.4 m3)

32 LD-1 containers + bulk =6,120 ft3 (173.3 m3)

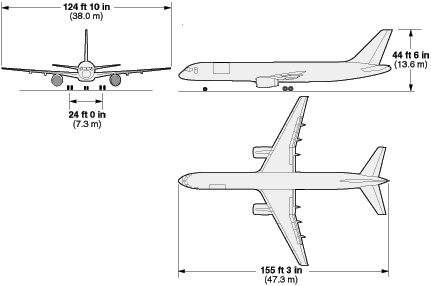

757-200

¡@

The 757-200 Freighter can carry 87,720 pounds (39,790 kg) of cargo and has a range of 3,530 miles (5,675 km) with volume payload capacity of 8,400 cubic feet (248.7 m3). Container positions 15 pallet or 88- x 125-inch

¡@

¡@

¡@

Boeing 757-200

The 757-200 Freighter can carry 87,720 pounds (39,790 kg) of cargo

And has a range of 3,530 miles (5,675 km) with volume payload

Capacity of 8,400 cubic feet (248.7 m3) ULD

Configuration: 15 pallet or 88- x 125-inch container positions


¡@

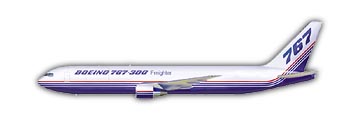

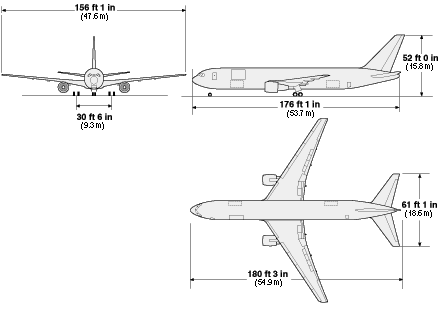

767-300

The 767-300 Freighter can carry up to 121,000 pounds (54,885 kg) of

Cargo 3,765 miles (6,055 km). side by side

main deck : twenty-four 88- x 125-inch contoured pallets,

lower hold seven 96- x 125-inch pallets or seven 88- 125-inch pallets + two LD-2 containers + bulk

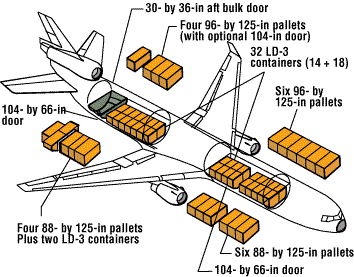

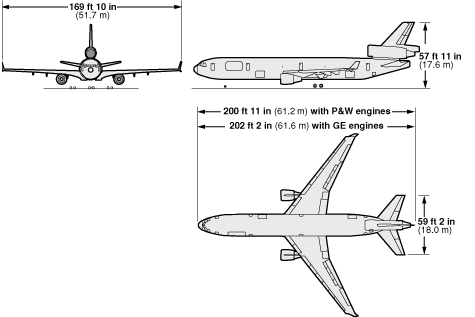

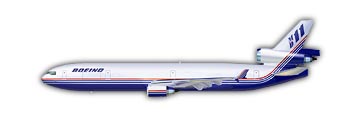

MD-11 Freighter

Positioned between the 767 Freighter and the 747 Freighter, the MD-11F offers the largest potential market for the MD-11 family and will be the focus of MD-11 marketing efforts. Main deck all pallets 15,530 (440) Lower deck : pallets & containers & bulk 4,976 (140.9)

Maximum gross weight, lb (kg):take off : 602,500 lbs (273,290 kgs)

Typical operating empty weight: 260,500 lbs (118,160 kgs)

¡@

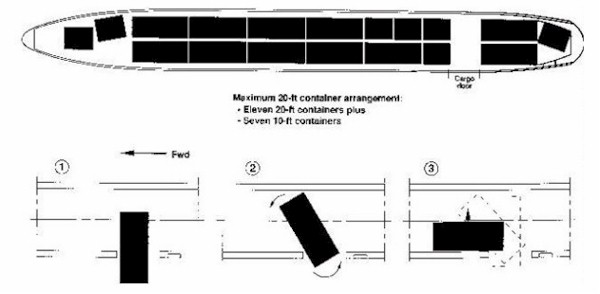

The 20-ft Unit Load Device (ULD) Cargo-Handling System With the 20-ft. unit load device (ULD) loading system, cargo can be loaded automatically as shown in this set of diagrams and pictures. The steerable power drive units in the door area are automatically sequenced to rotate the 20-ft. long ULD from transverse to longitudinal orientation.

¡@

¡@

ID Code : P6P, PMC

U.S. Domestic Code : M-1 (Main Deck)

Aircraft Types & Main or Lower Deck 747 Freighter Main Deck *

Rate Class 2H, 2C

Internal Volume Limiting Internal Dimensions

Maximum Gross Weight : 6800 kg (15000 lb)

Tare Weight (incl. net) : 110 kg (242 lb)

Contour applies to 747F side-door loader. On 747F nose-door

loader max. height is 224cm/96in

¡@

LD 7

ID Code : P1P, PAG, PAP, PAJ, P1G U.S. Domestic Code : LD-7

Aircraft Types & Main or Lower Deck All 747's & 767 * Lower Deck

Rate Class 5

Internal Volume: Limiting Internal Dimensions:

Maximum Gross Weight : 4626 kg (10200 lb)

Tare Weight (incl. net) : 110 kg (242 lb)

This unit may also be loaded on the main deck of 747F. Max. gross

weight is then 6800 kg/15000 lb. On 767, max. gross weight is 5035 kg/11100 lb

¡@

¡@

ID Code : AVE, AKE U.S. Domestic Code : LD-3

Aircraft Types & Main or Lower Deck All 747's & 767 : Lower Deck

Rate Class : 8 Internal Volume : 4.3 m3 (153 cu ft)

Limiting Internal Dimensions At Base : 140 x 147 x 152 cm

(55 x 58 x 60 in)

Maximum Gross Weight : 1587 kg (3500 lb)

Tare Weight : Actual tare weights vary from 77 kg/170 lb to 112 kg/247 lb depending

on manufacturer's models.

¡@

ID Code : AAU U.S. Domestic Code: LD-29

Aircraft Types & Main or Lower Deck : All 747's Lower Deck

Rate Class : 5W Internal Volume : 14.5 m3 (511 cu ft)

Limiting Internal Dimensions : At Base 208 x 302 x 152 cm (82 x 119 x 60 in)

Maximum Gross Weight : 4626 kg (10200 lb) Tare Weight : 260 kg (573 lb)

¡@

¡@

ID Code : AA2, AAP U.S. Domestic Code : LD-9

Aircraft Types & Main or Lower Deck : All 747's & 767 * Lower Deck

Rate Class : 5 Internal Volume:: 10.6 m3 (374 cu ft)

Limiting Internal Dimensions : 208 x 302 x 152 cm : (82 x 119 x 60 in)

Maximum Gross Weight : 4626 kg (10200 lb) *

Tare Weight : Actual tare weights vary from 200 kg/441 lb to 272 kg/600 lb depending on manufacturer's models

This unit may also be loaded on the main deck of 747F. Max. gross weight is then 6800 kg/15000 lb. On 767, max. gross weight is 5035 kg/11100 lb.
